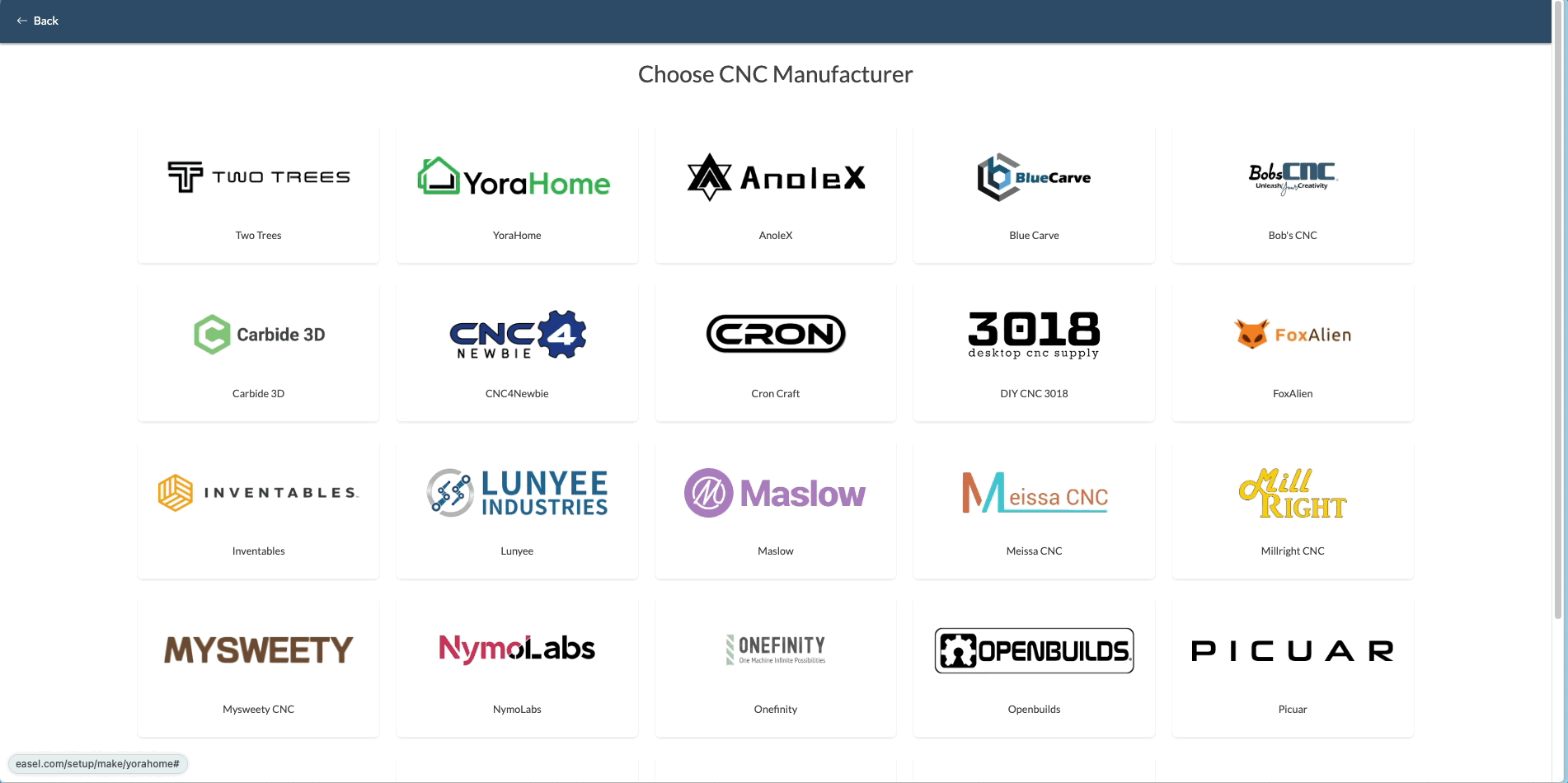

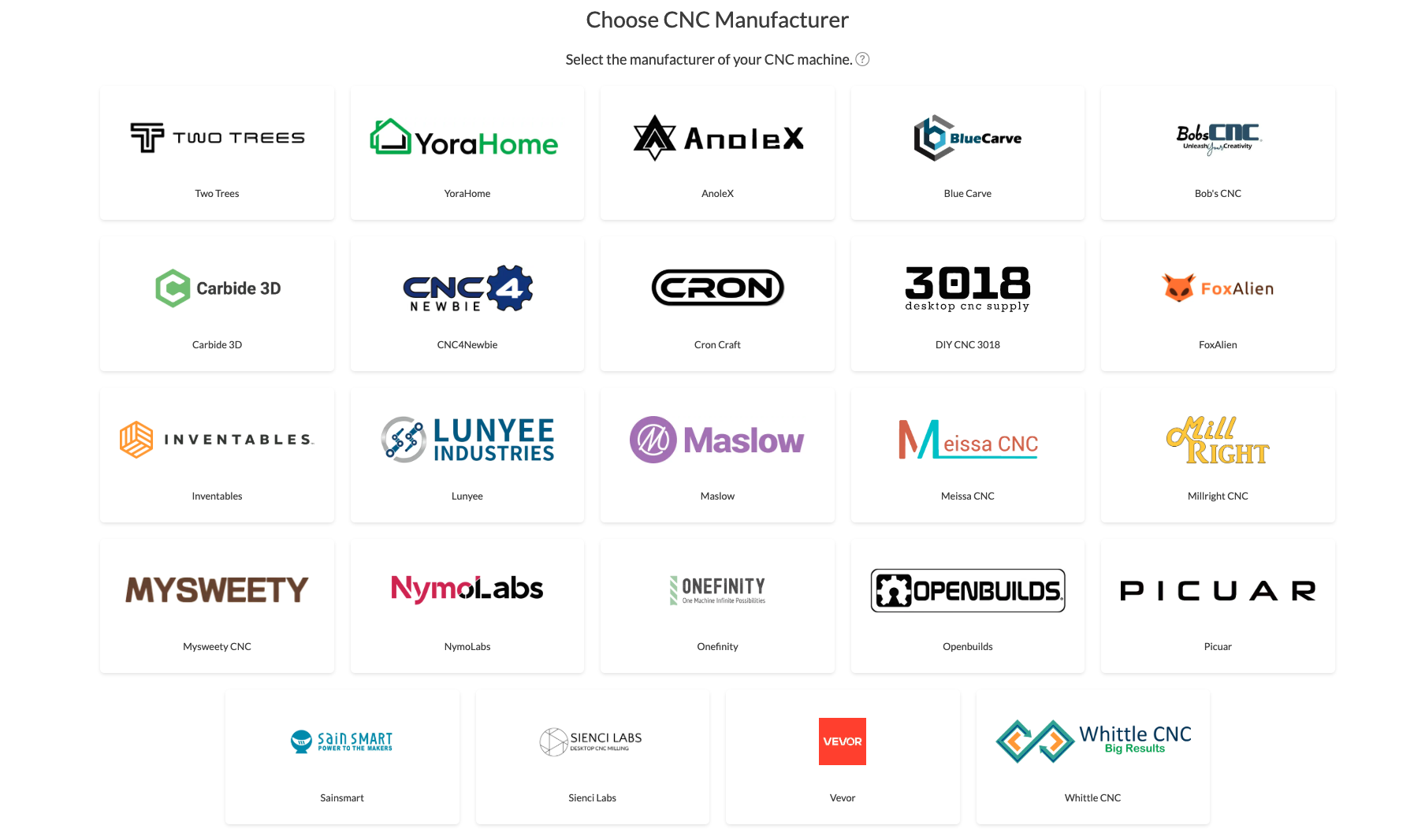

Once you have started the machine profile setup, Easel will prompt you to choose your CNC manufacturer:
|

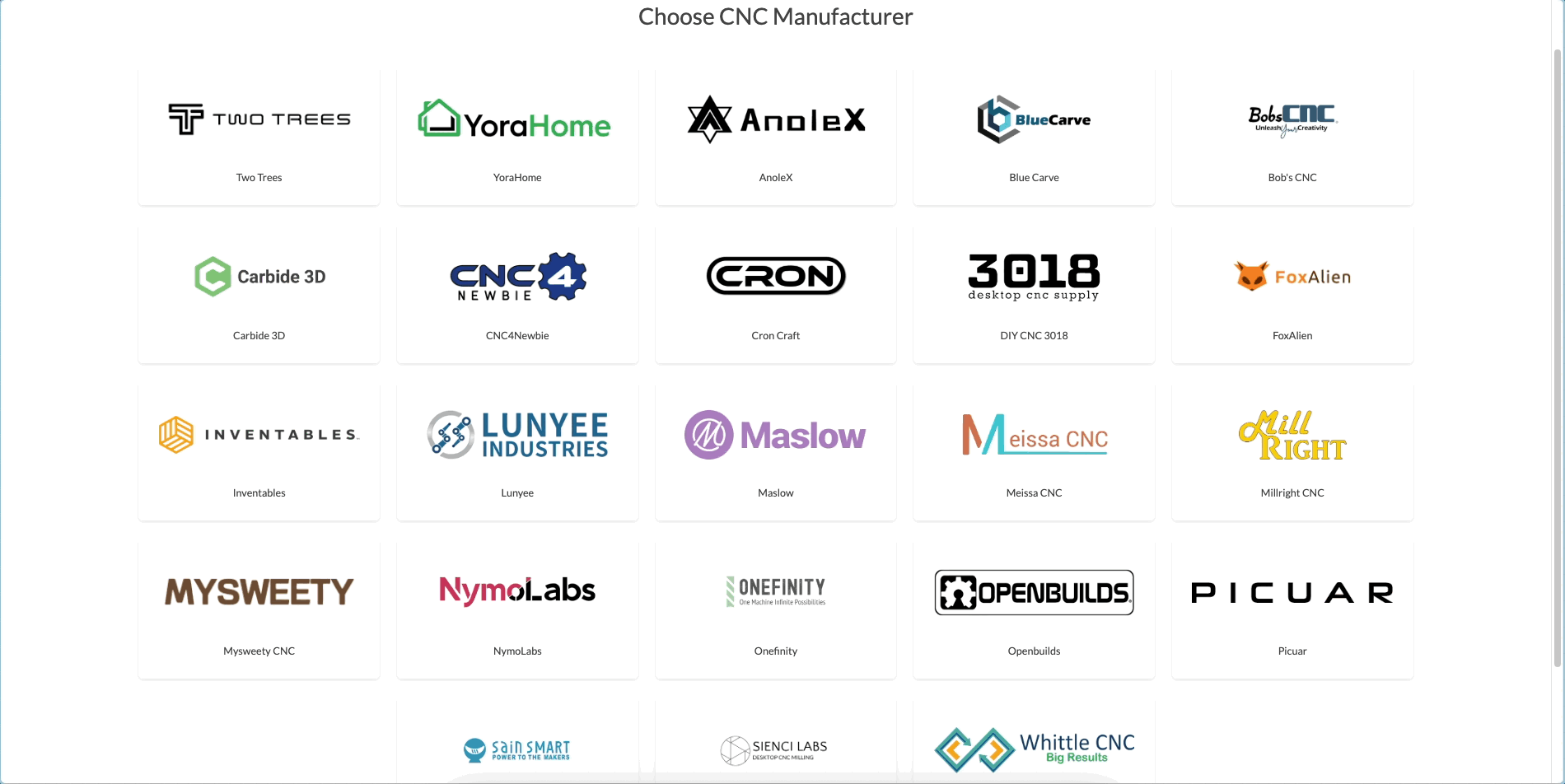

Helpful Tip: If you do not see your manufacturer listed, you can select "I have a different CNC manufacturer that is not listed" at the bottom of the screen. This will take you to a page that allows you to put in your machine details manually. |

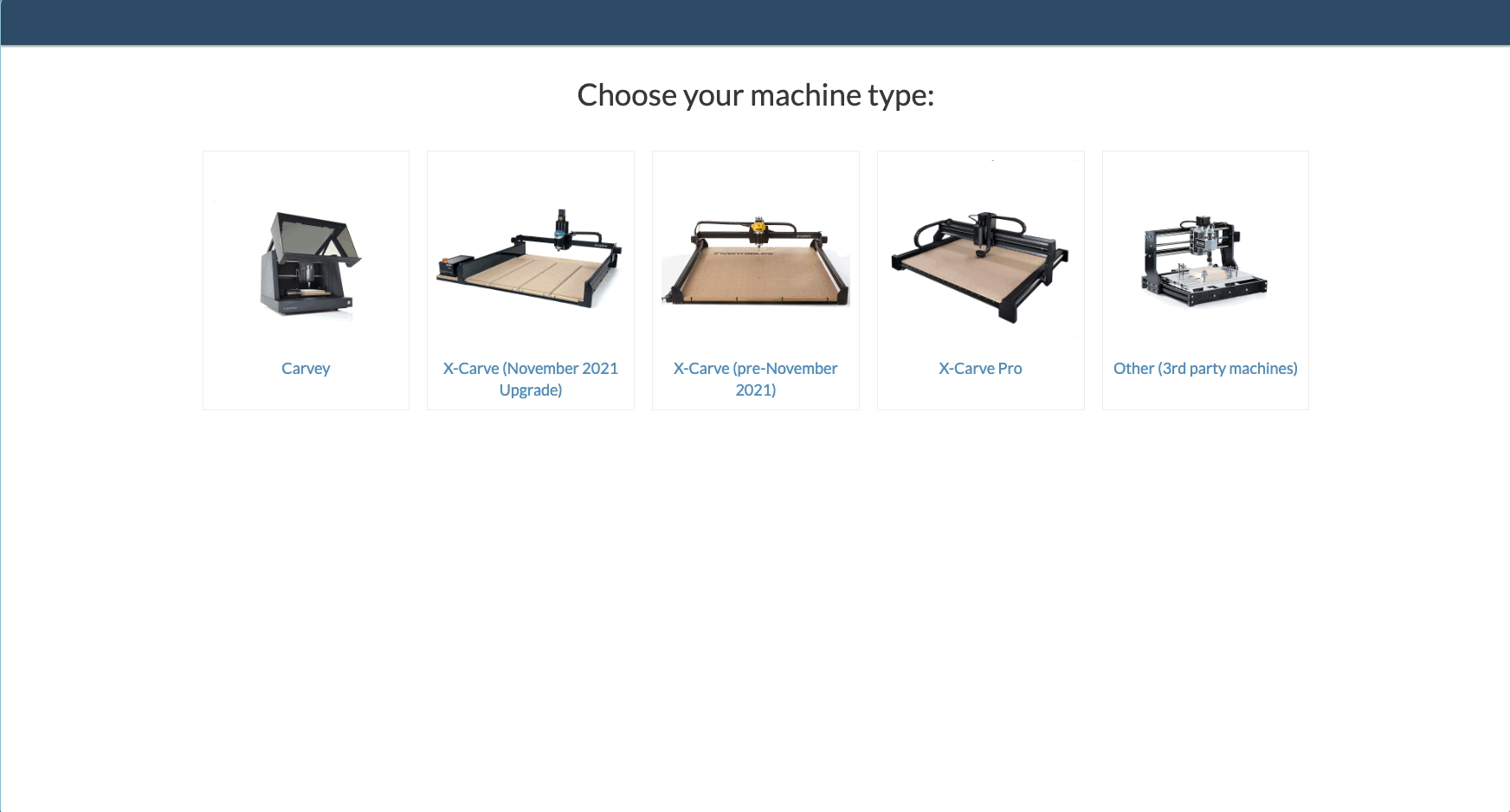

Once you select your manufacturer, you’ll be taken to a screen displaying images of the various machines offered by that manufacturer. Choose the image that matches your machine.

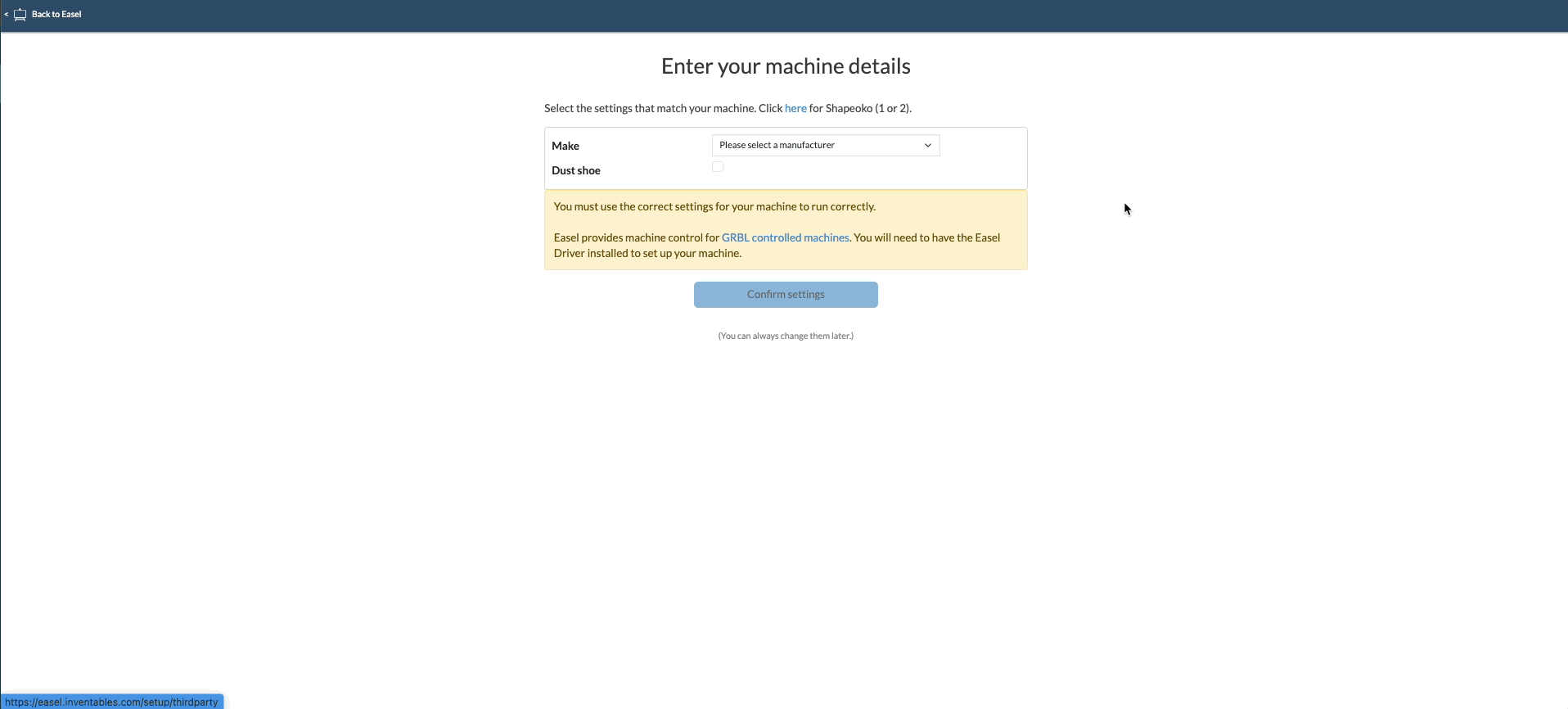

After selecting your machine, you’ll be brought to a screen to review the machine details and indicate whether your machine has a dust shoe.
Click Confirm Settings to proceed with the setup.
Easel will either start writing the machine configuration, or it will prompt you to download the Easel driver before continuing.

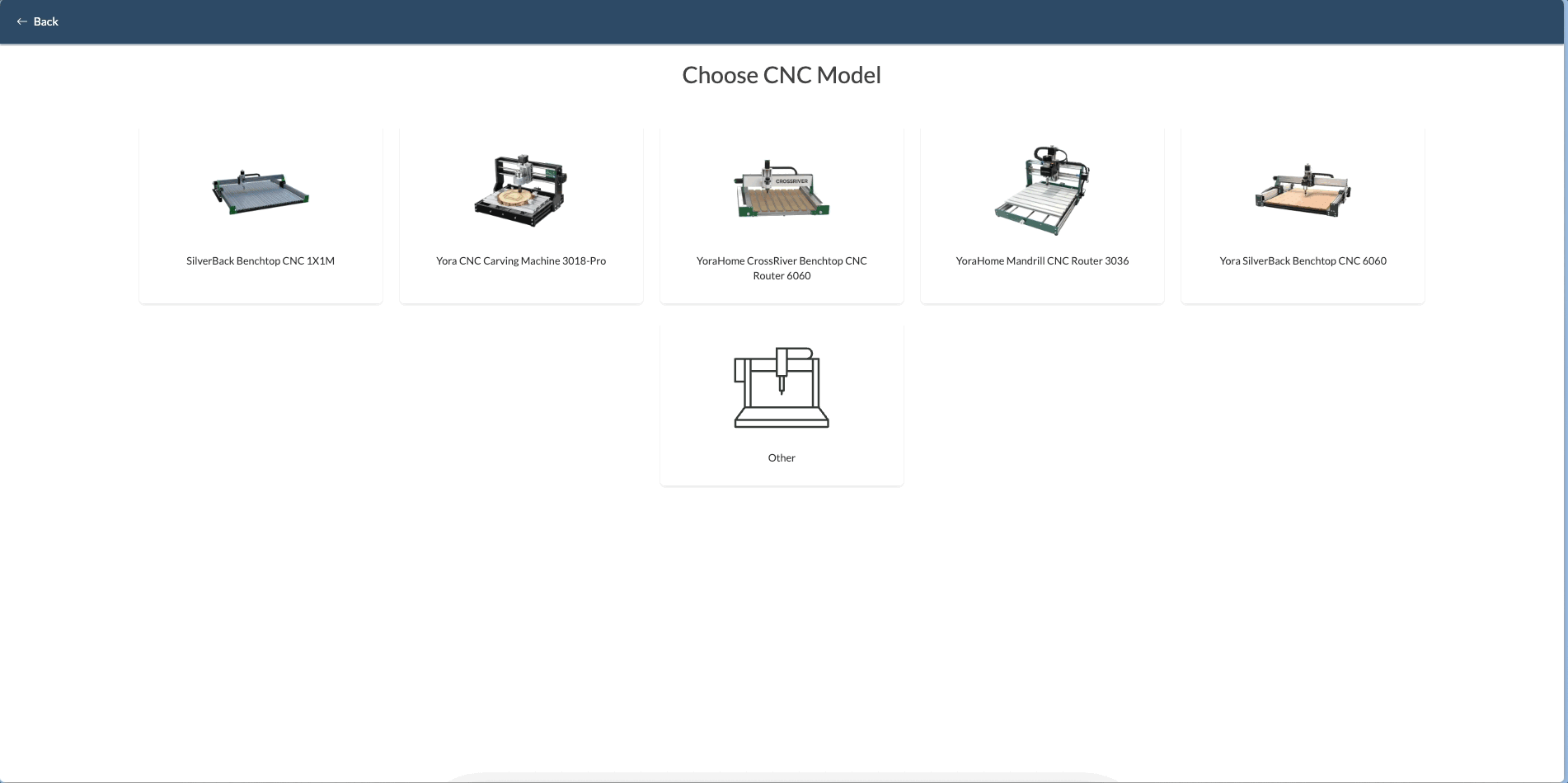

If you do not see your machine listed under the manufacturer page, you can select "Other" from the drop-down menu. This will bring you to a menu for manually entering your machine details.
For more detailed instructions on downloading and installing the Easel driver, you can follow this link: Downloading and Installing the Easel Driver
