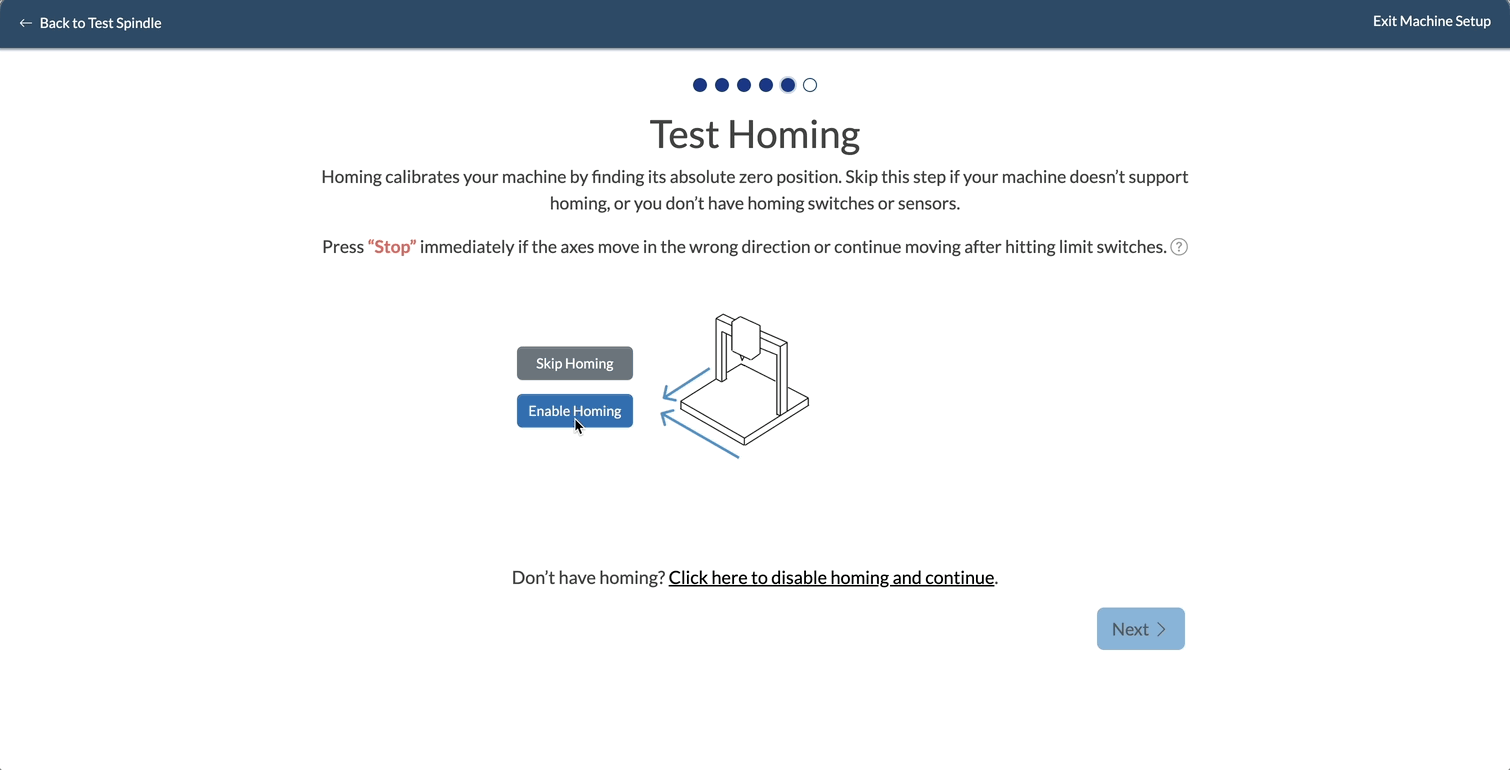

On this page, Easel will ask if you want to enable or disable homing.
What is Homing?
Homing is the process a CNC machine uses to find a fixed reference point—its “home” position—before beginning any cutting or carving. This reference point acts as a baseline for all movements, ensuring that the machine knows exactly where it is in its work area. Without homing, the CNC relies only on its powered-on position, which can lead to inaccuracies if the machine is turned off or shifted between sessions.
What are Homing Switches?
Homing switches (sometimes called limit switches) are small sensors installed on your machine’s axes. When the machine moves during the homing cycle, it travels toward these switches until contact is made. That contact signals to the controller that the axis has reached its home limit, establishing a precise starting point. Most homing switches are mechanical, optical, or magnetic, and they are positioned so the machine can consistently return to the same location.
How to Tell if Your CNC Has Homing Switches
Not all CNC machines come with homing switches by default. To determine if yours does:
-
Check your machine’s specifications: The manufacturer’s documentation or product page should list whether homing or limit switches are included.
-
Look for physical switches: Inspect your machine’s X, Y, and Z axes near the ends of travel. Homing switches are usually small levers, buttons, or sensors mounted near the rails.
If you click “Enable Homing,” you will be prompted to run the homing sequence. This process moves your machine to its home position before continuing with the setup. If you click "Skip Homing” you will proceed to the next setup step page
