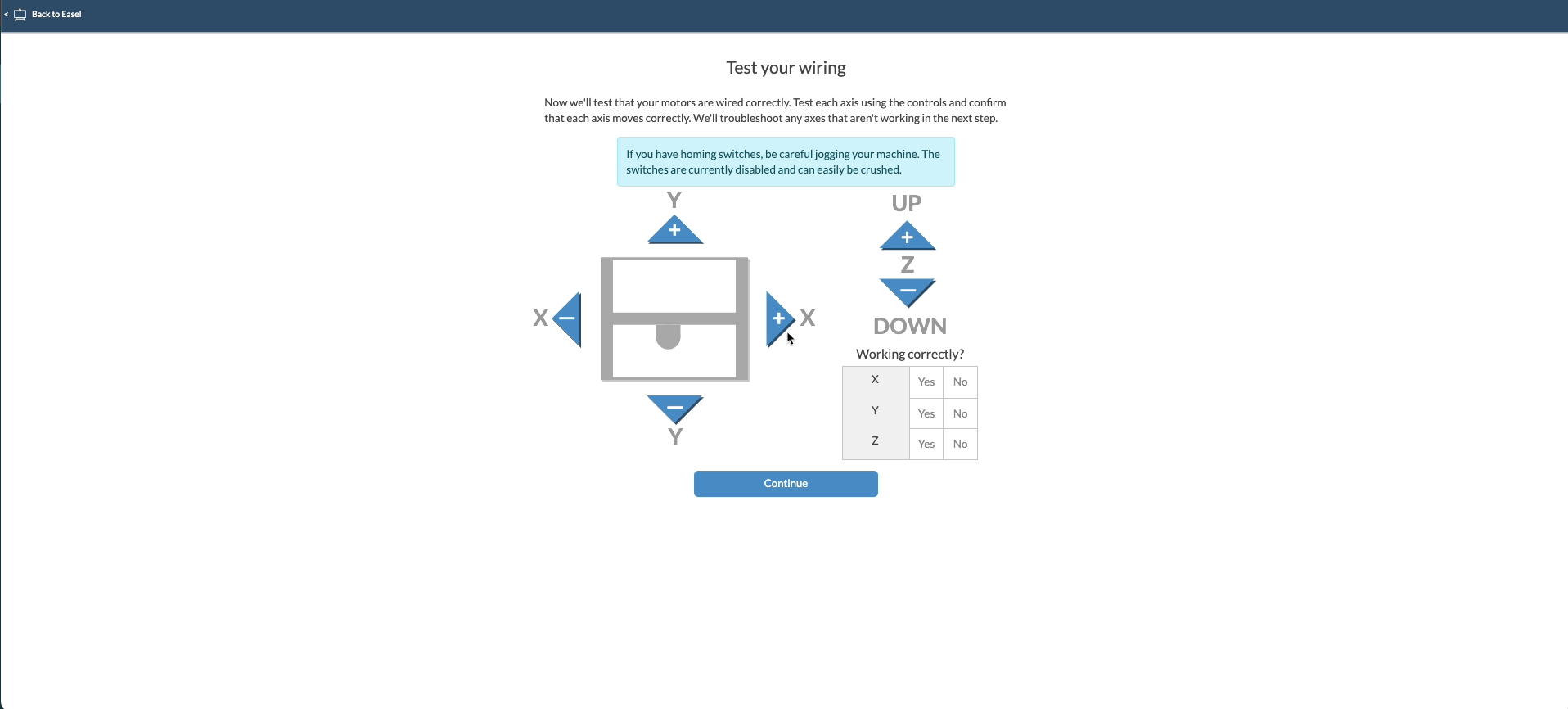

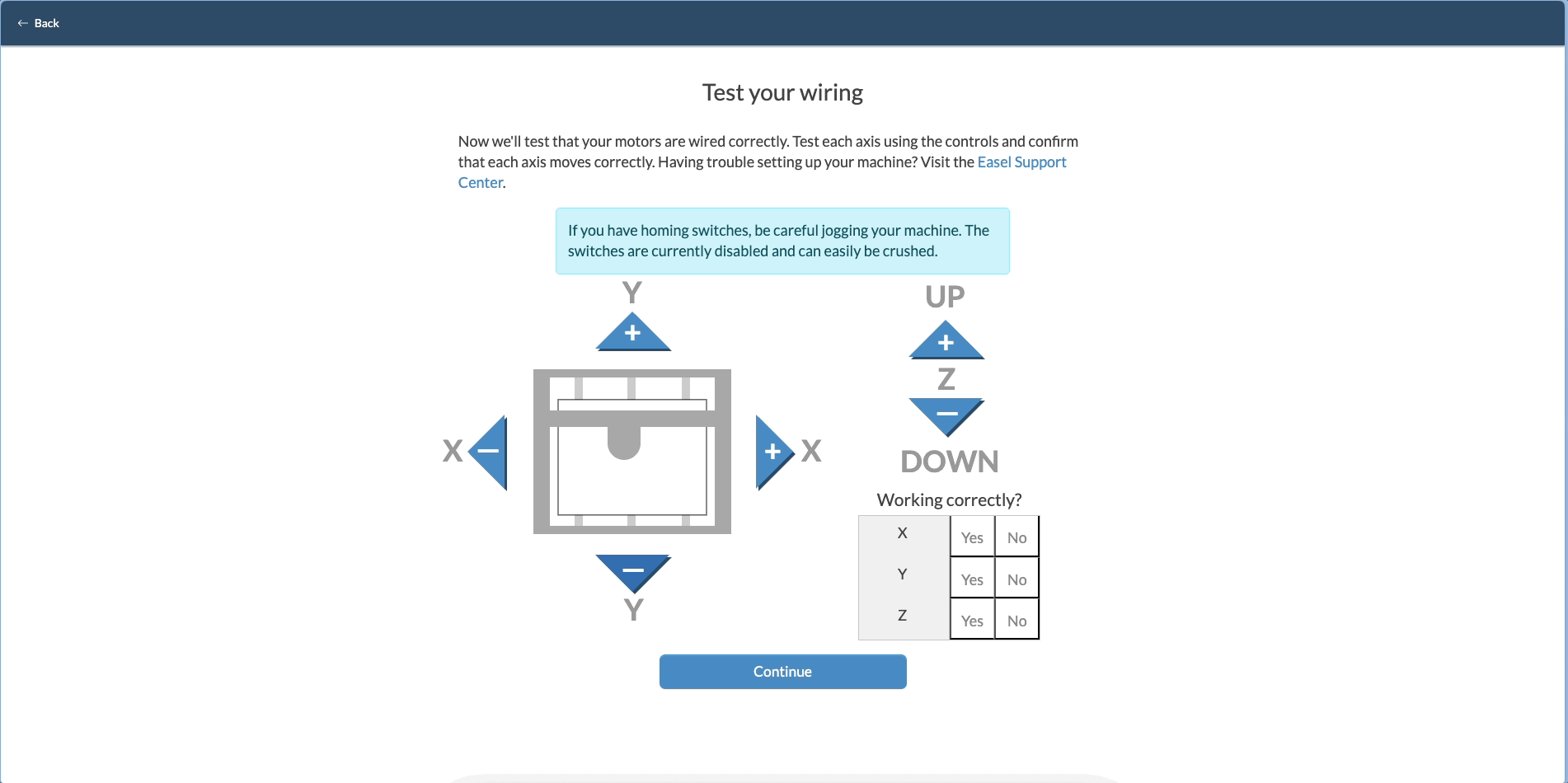

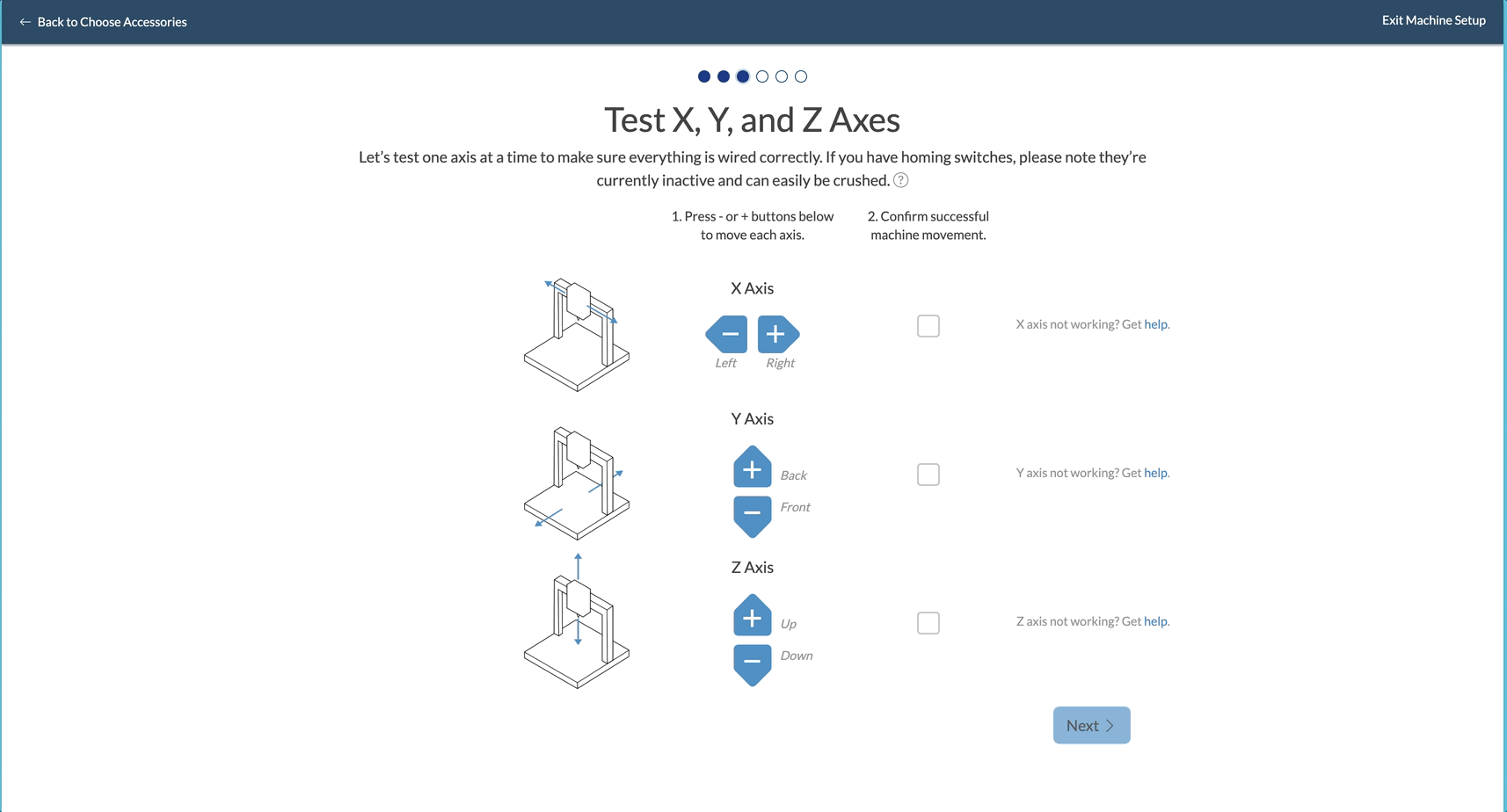

Once the machine configuration is complete, Easel will display a page to test your machine’s axis movement. On this page, you can jog the machine along each axis to ensure everything moves in the correct direction. Once you have confirmed the movement, be sure to check the box to the right on the axis.
If the machine's axes are not jogging or moving at all when pressing the corresponding buttons, this is most often caused by a hardware wiring issue. Double-check to make sure all cables are securely seated at both ends.
After confirming that all axes are jogging properly, click Next to proceed.
| Helpful Tip: If one of the machine axes is jogging in the wrong direction, you can adjust the GRBL settings by following this video. |
