Easel lets you set two different heights the bit lifts to when it isn't cutting: the safety height and the origin safety height.
Safety height

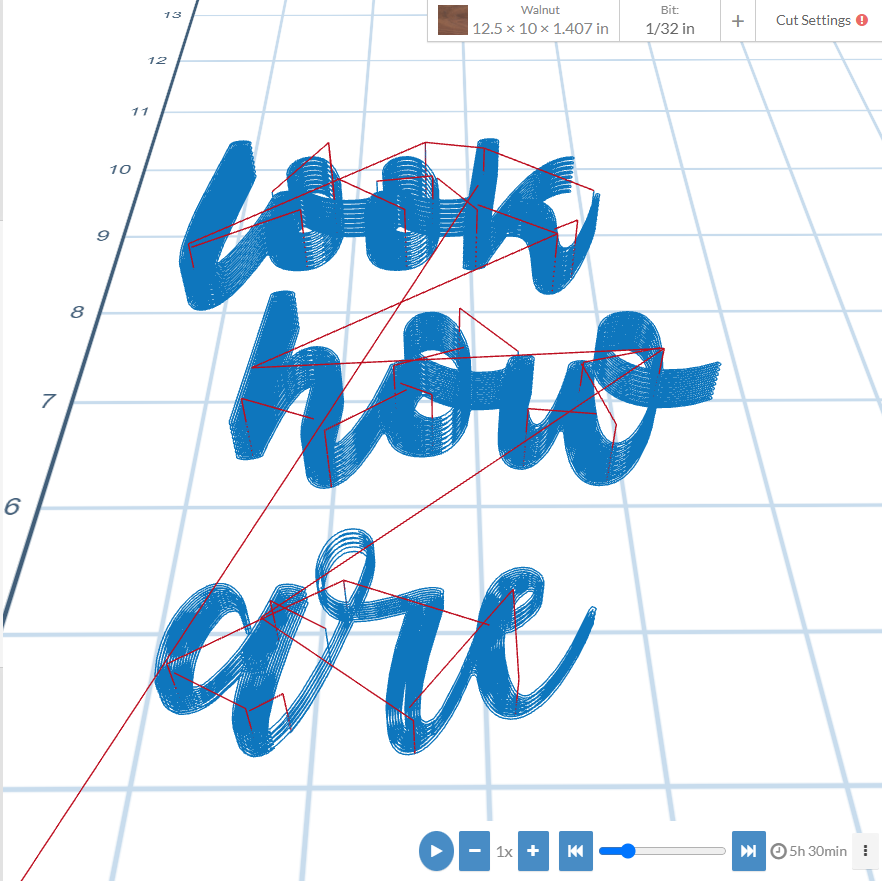

Safety height is how far the bit lifts above your material when it moves between parts of your design during a carve. These moves are shown as red lines in a toolpath simulation.
Origin safety height
Origin safety height is how far the bit lifts when a carve starts and when it finishes. In this simulation, the red lines show the bit lifting and moving from the starting point to the pocket, and back again when it's done.
Changing your safety heights
- Open the Machine menu and click General Settings (1).
- Enter a Safety Height (1) and an Origin Safety Height (2).
| Important: General Settings apply to every machine you use with Easel. Make sure your safety height is high enough for the bit to clear your clamps. |
